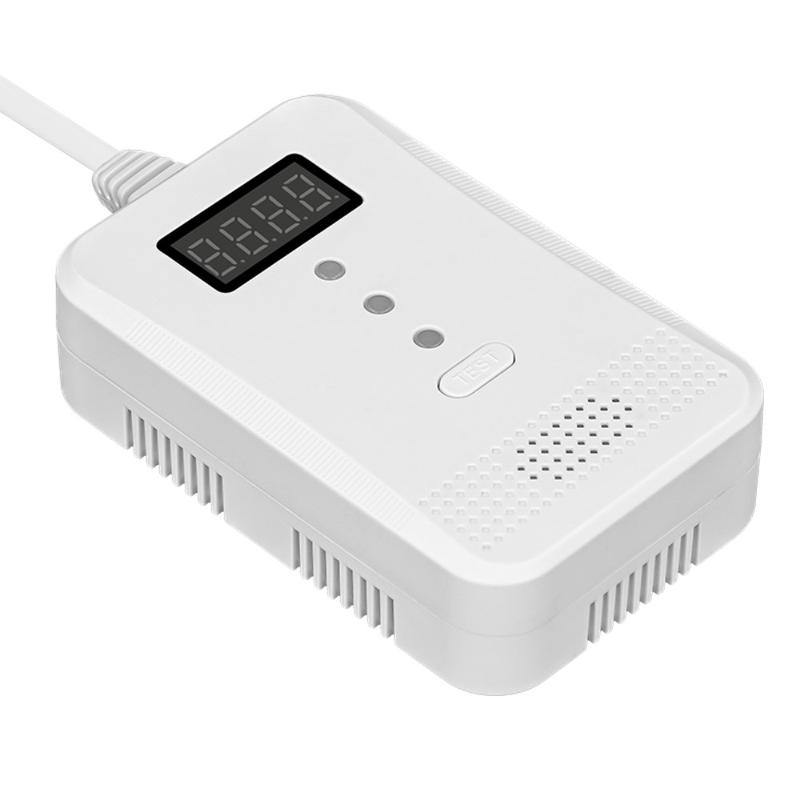

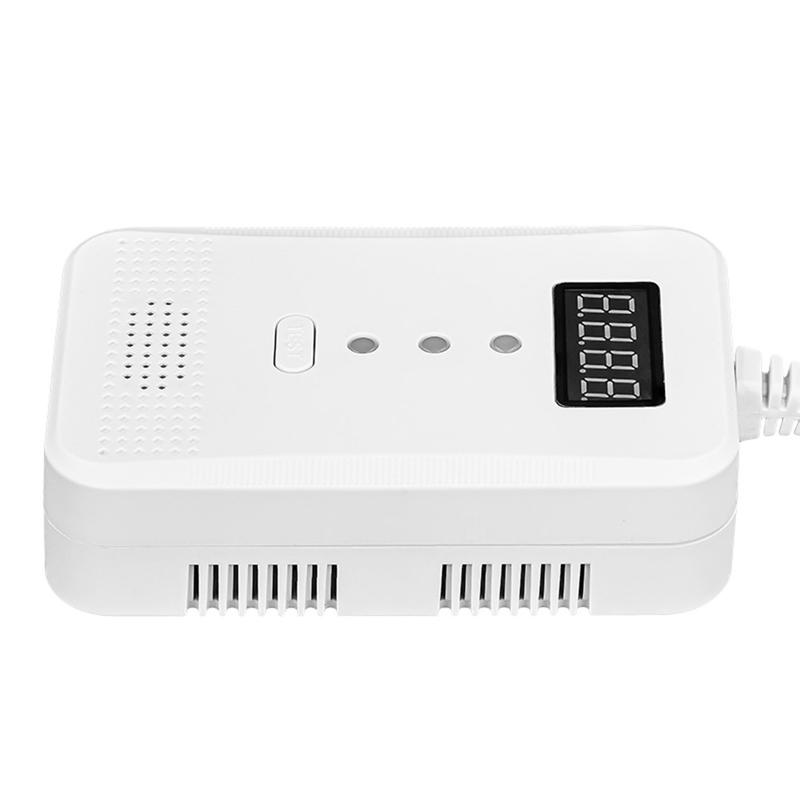

XY-G805 Natural Gas Detector High Volume Alarm Fuel Gas Leak Sensor with Solenoid Valve Output

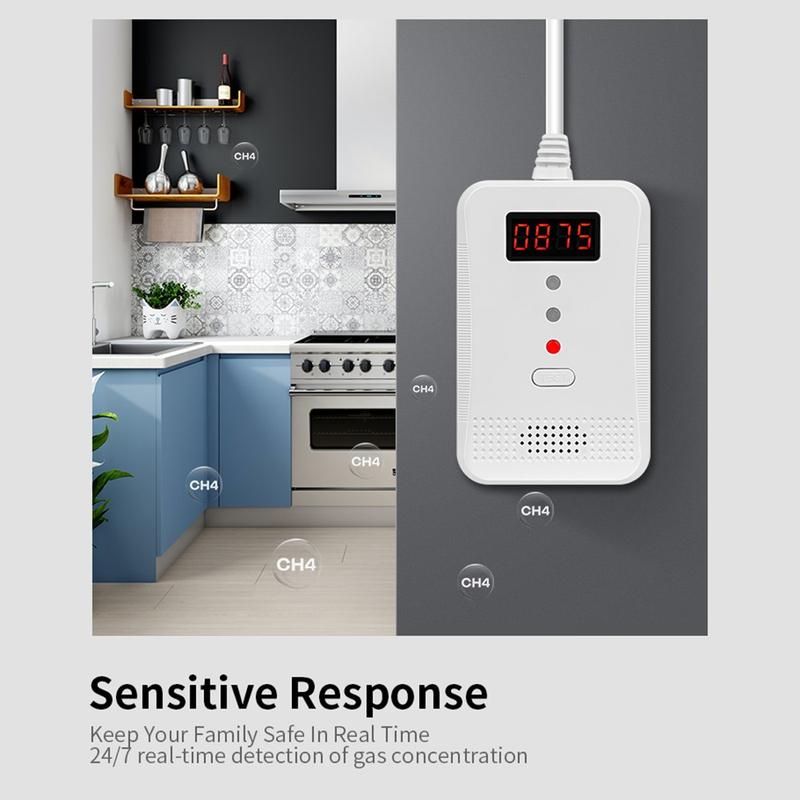

24/7 real-time detection of gas concentration, keep your family safe in real time

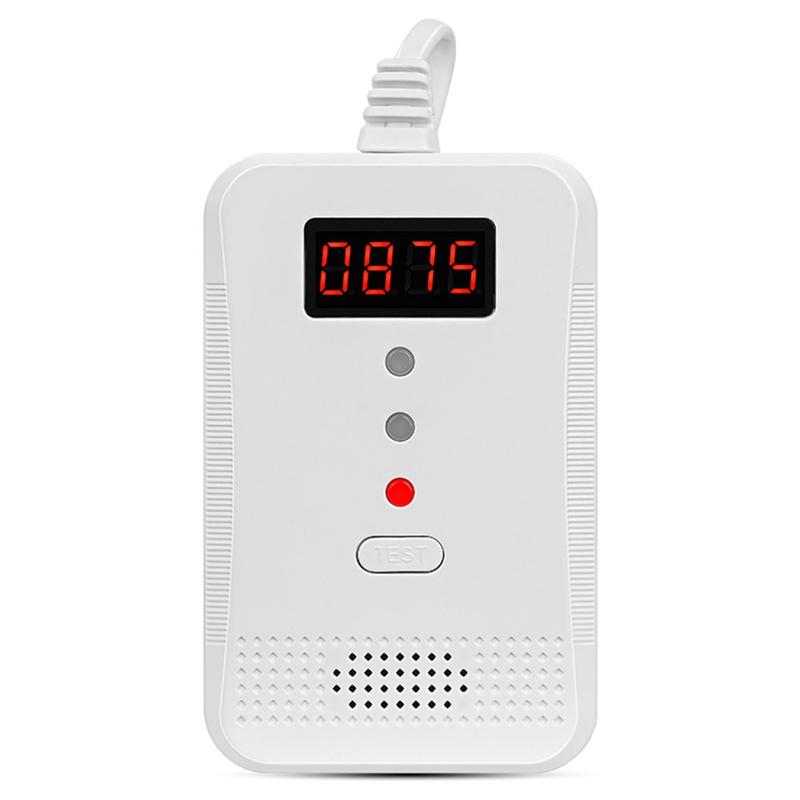

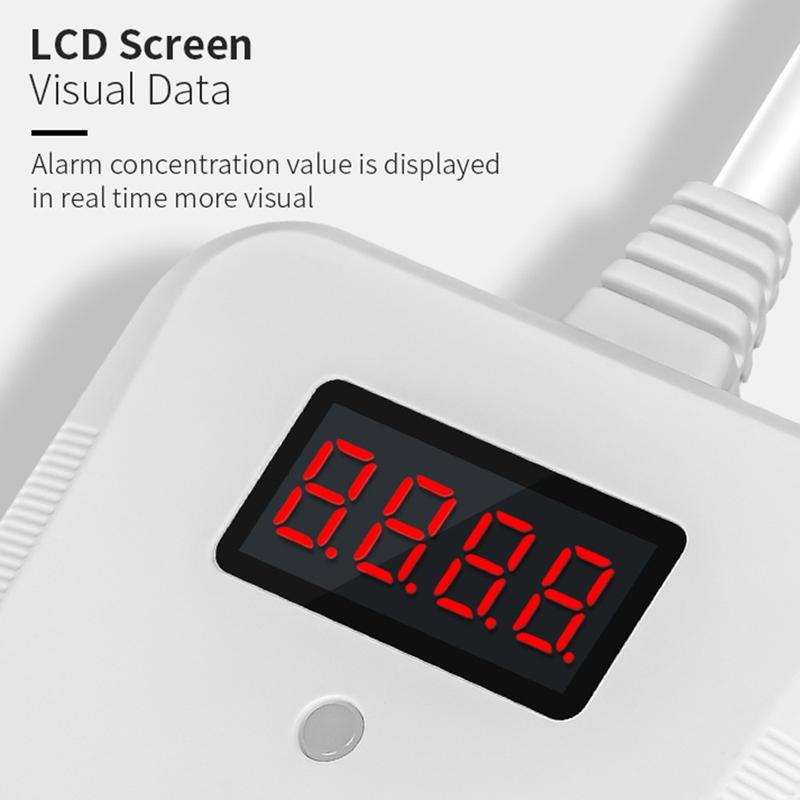

With LCD screen, alarm concentration value is displayed in real time, more visual

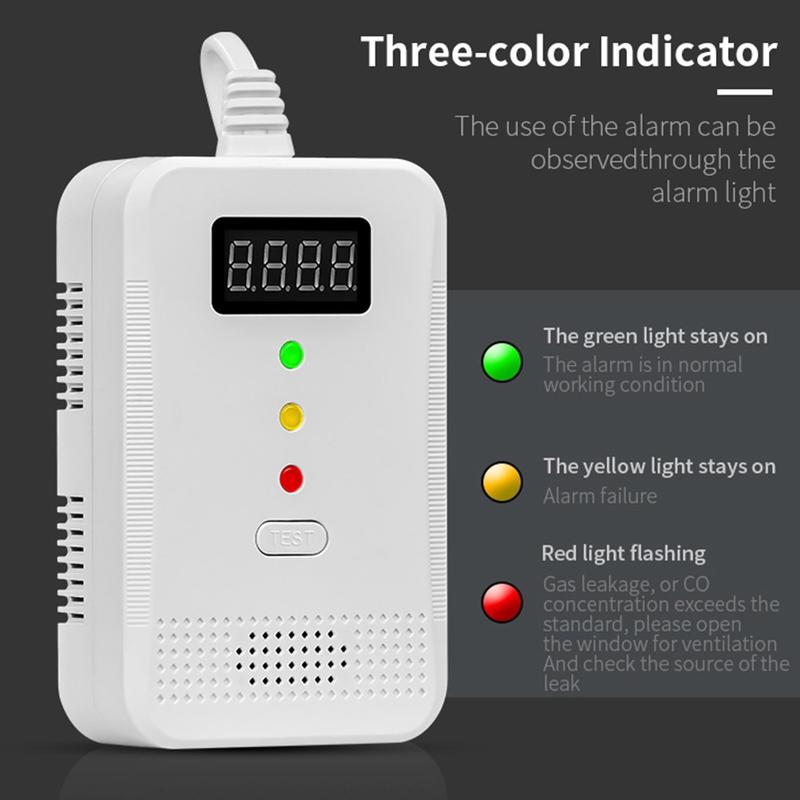

Three-color indicator, the use of the alarm can be observed through the alarm light

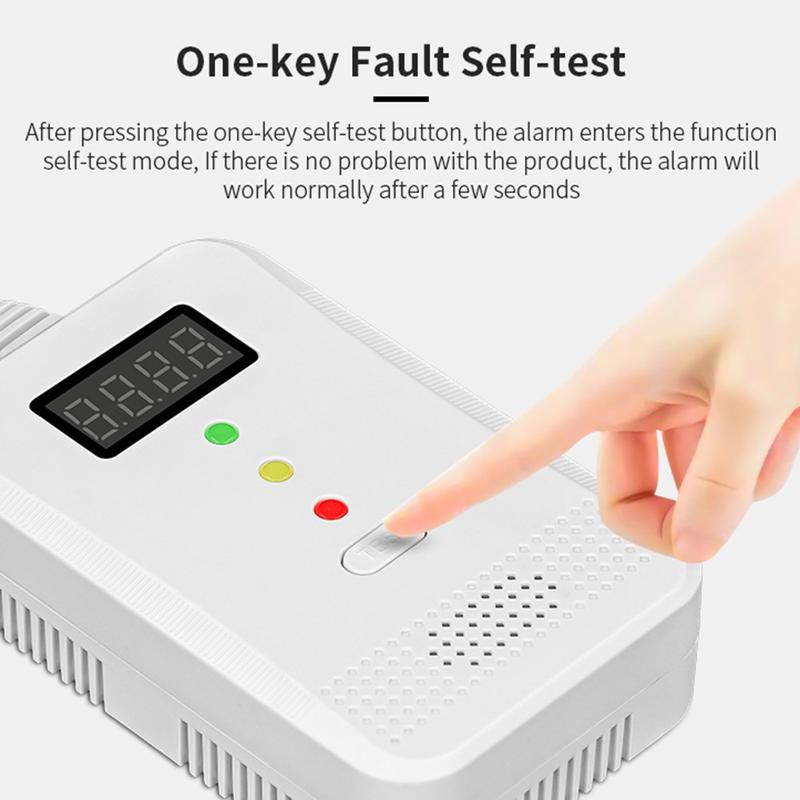

After pressing the one-key self-test button, the alarm enters the function self-test mode, if there is no problem with the product, the alarm will work normally after a few seconds

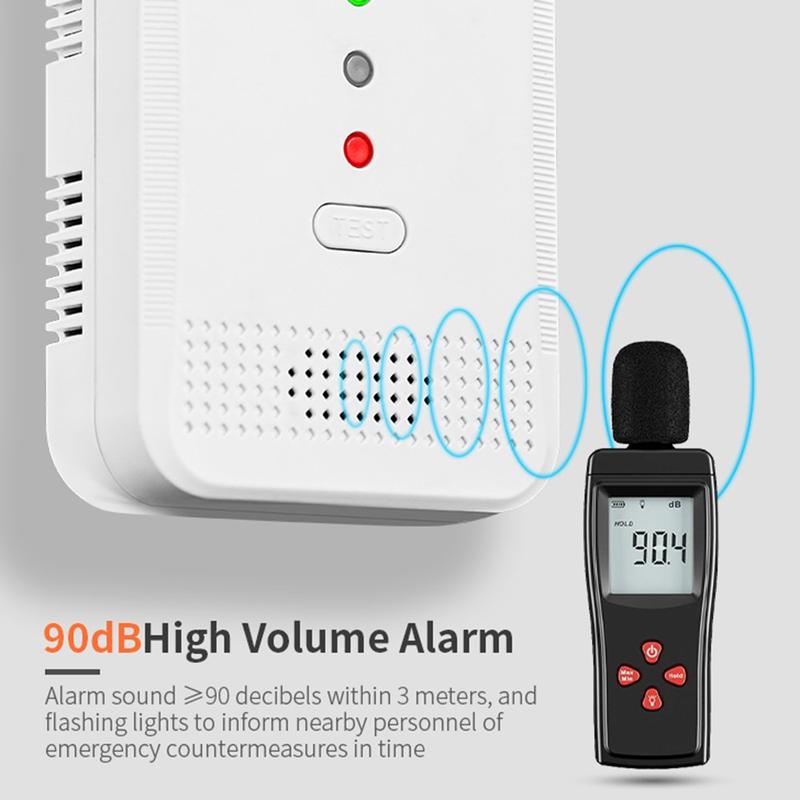

Alarm sound ≥90 decibels within 3 meters, and flashing lights to inform nearby personnel of emergency countermeasures in time

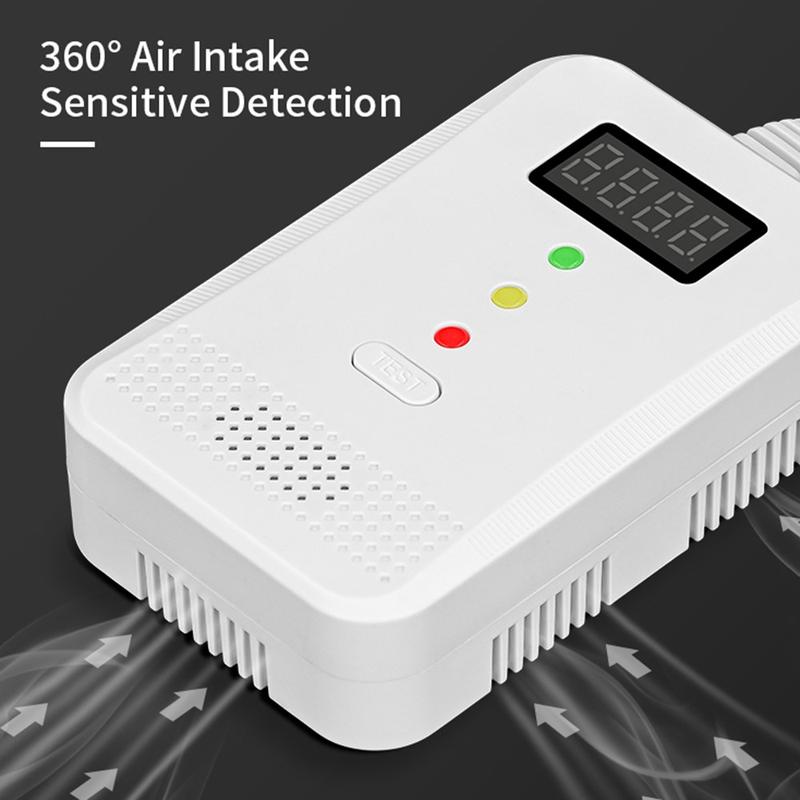

360° air intake, sensitive detection
Specifications:
Operating Voltage: AC 90~240V
Static Current: 90mA
Alarm Current: 100mA
Rating Power: 3W
Warm-up Time: About 180S
Alarm Level: 3500±1500PPM (7±3%LEL)
Sound Level: ≥85dB/m (≤3m)

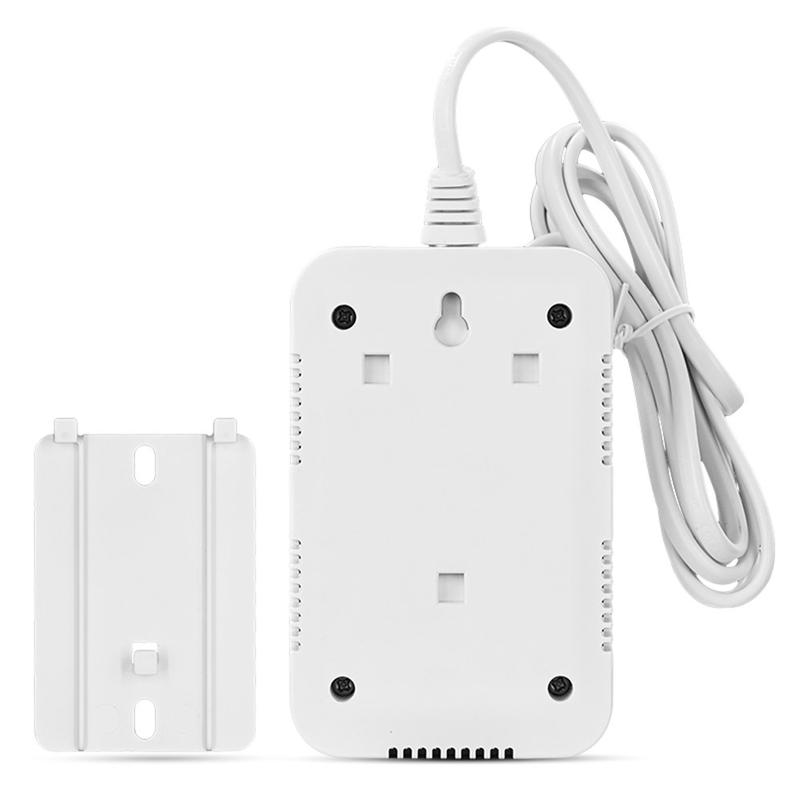

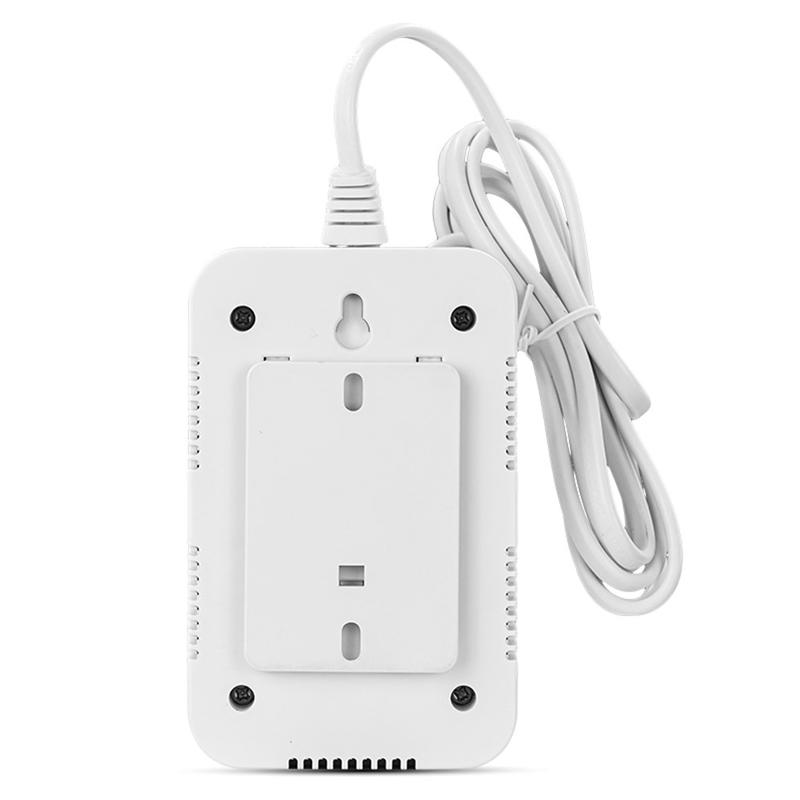

Installation Mode: Wall mounted
Response time: ≤10 seconds
Recovery time: ≤30 seconds
Alarm Indicator: Human voice alarm, red LED
flash and LED display (12 volt pulse voltage)
Operating Temperature: -10℃~+55℃
Environment Humidity: ≤95%RH (No condensation)
Installation Mode: wall mounted

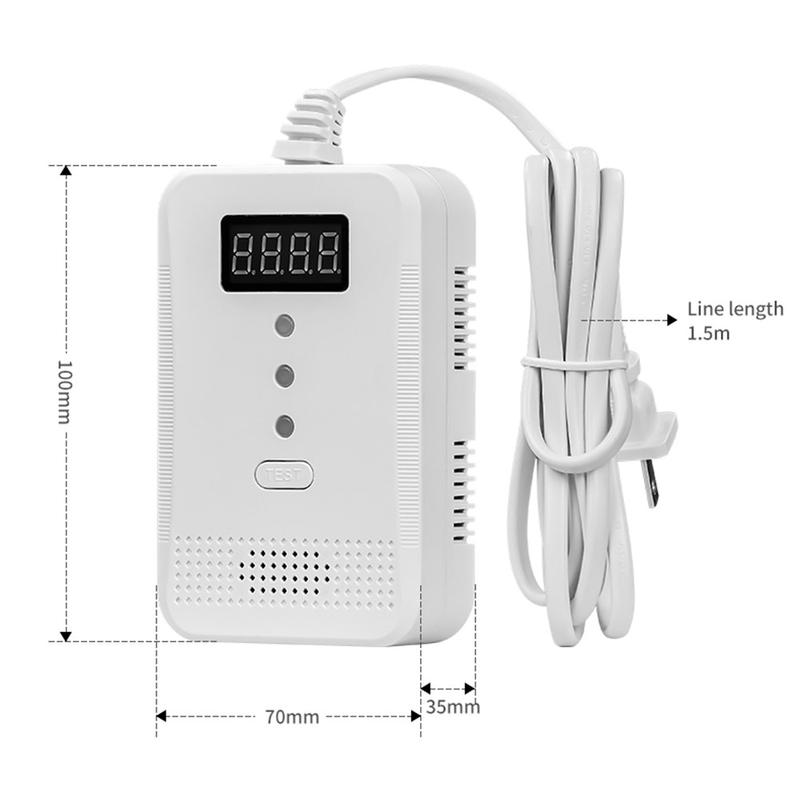

Outline Size: 100*70*35mm
EAN: 5714122450777
-
