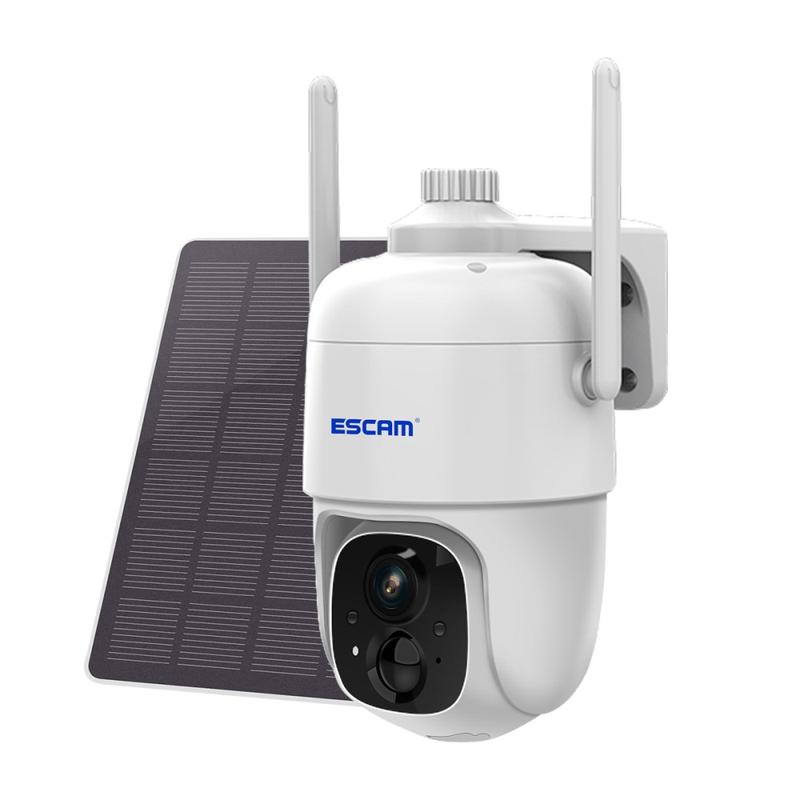

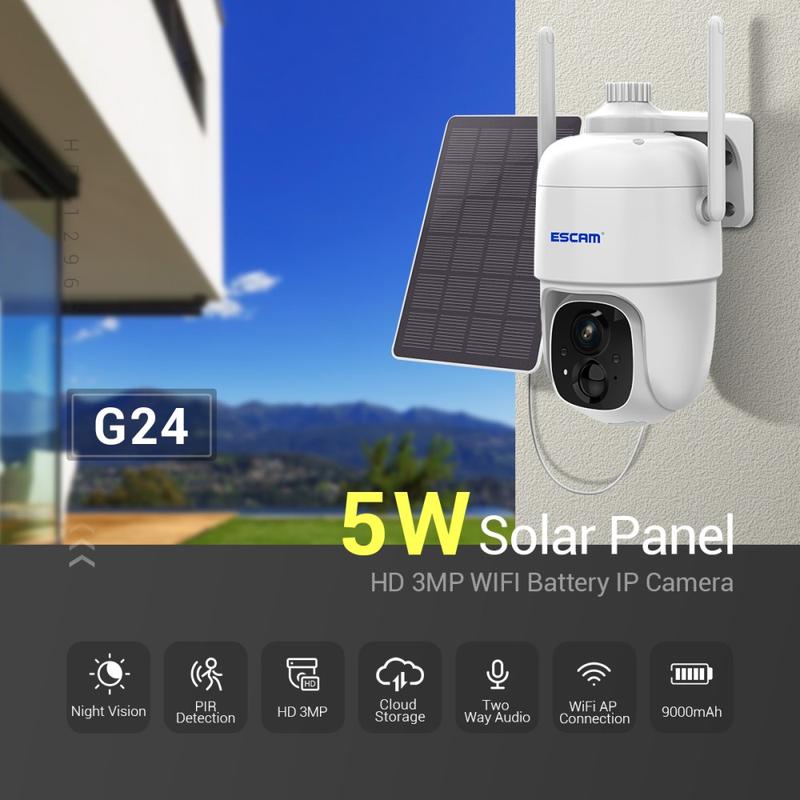

ESCAM G24 H.265 3MP Full HD AI Identify Camera with Solar Panel PIR Alarm WiFi Camera Built-In Battery

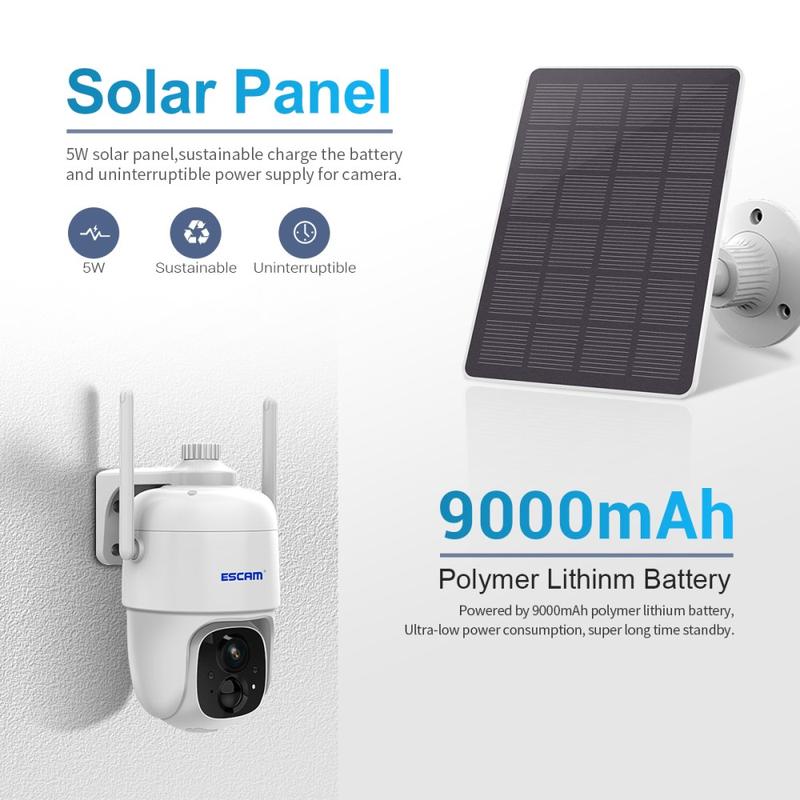

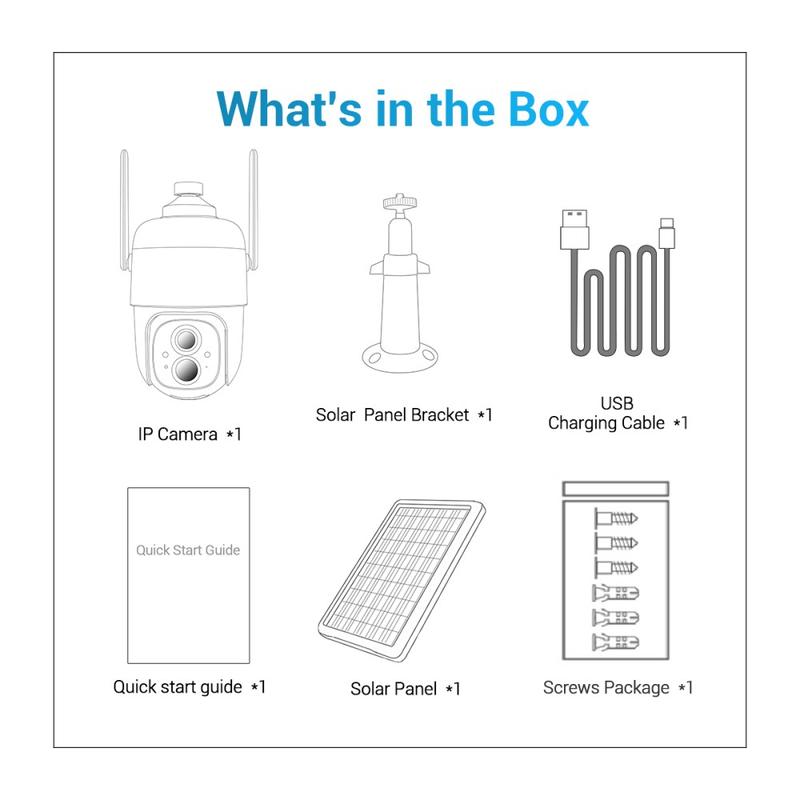

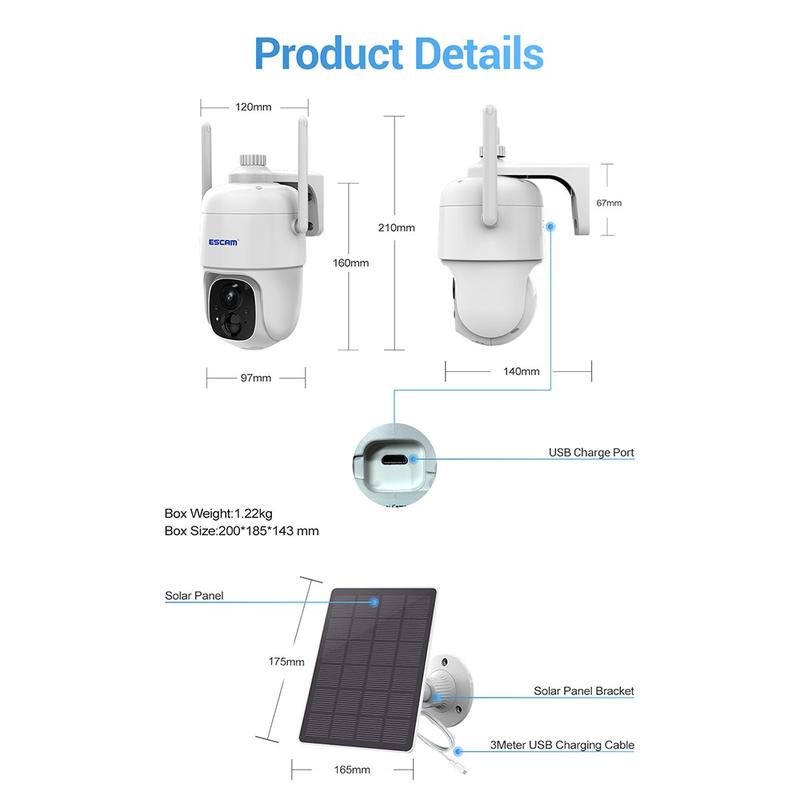

5W solar panel with bracket, including 3m solar panel connection cable

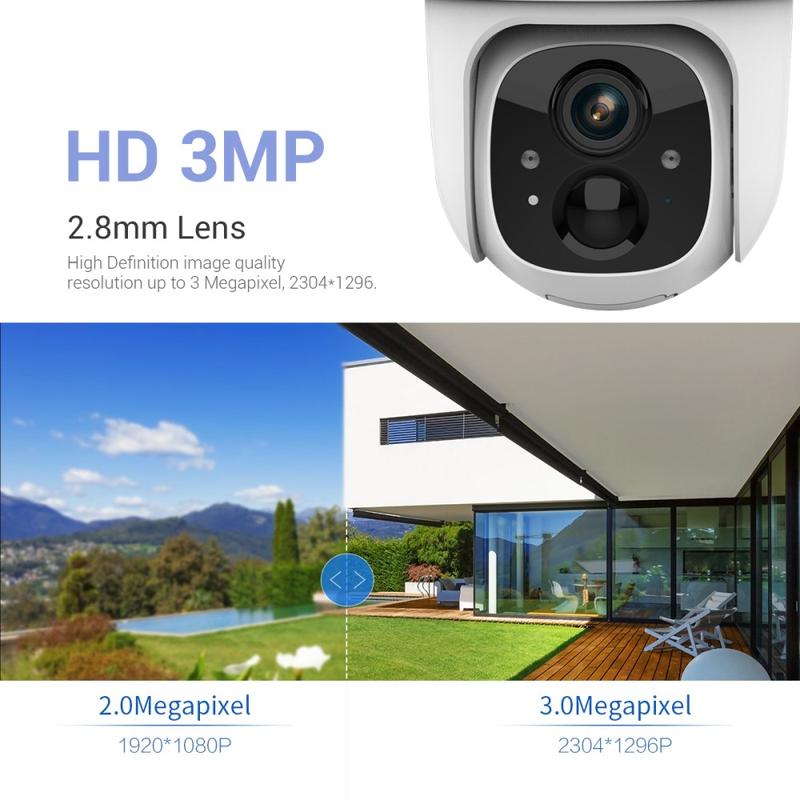

300W HD pixel, clear picture quality
Standard H.265 video compression algorithm, to meet the narrow bandwidth network in the transmission of high-definition video

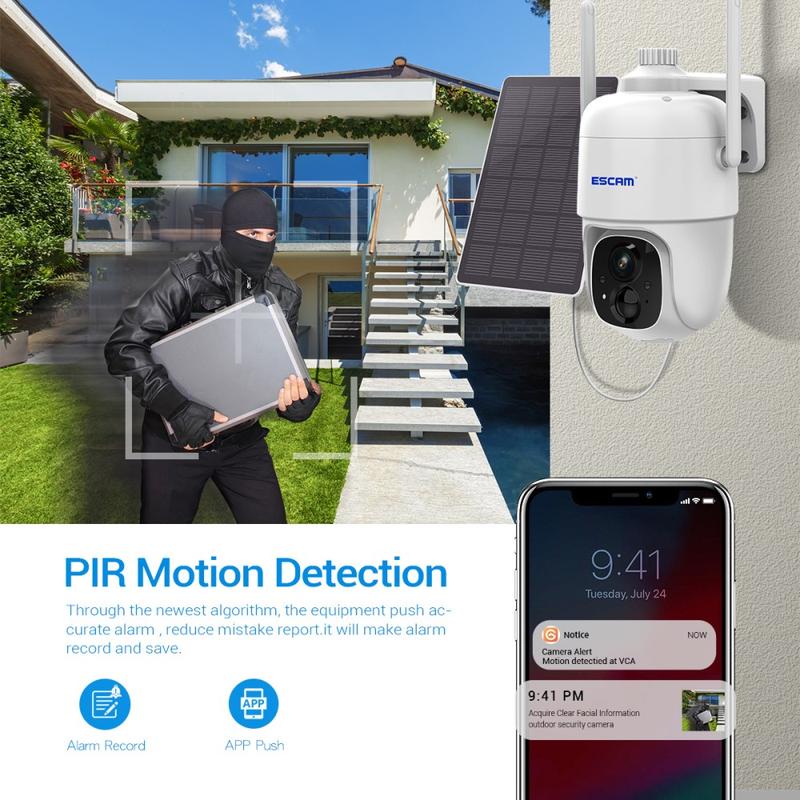

Support PIR alarm, APP message push, white light flashing, and alarm sound warning.
Support two-way voice intercom, echo cancellation, noise suppression

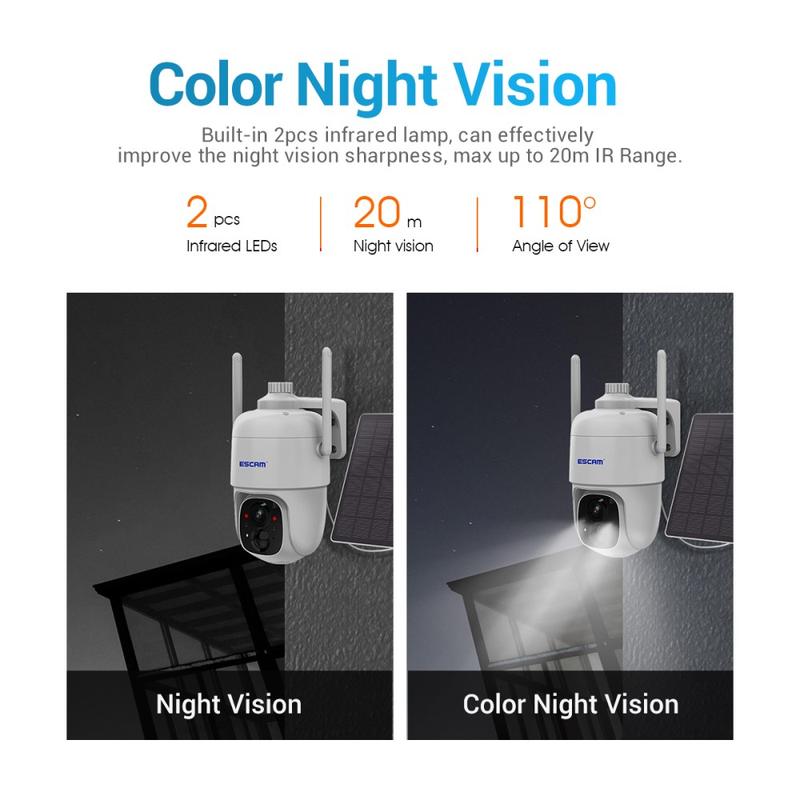

Intelligent night vision: 2 white lights, 2 infrared lights night vision lighting (night vision distance up to 20 meters)
Built-in rechargeable lithium battery 9000mAH, long battery life

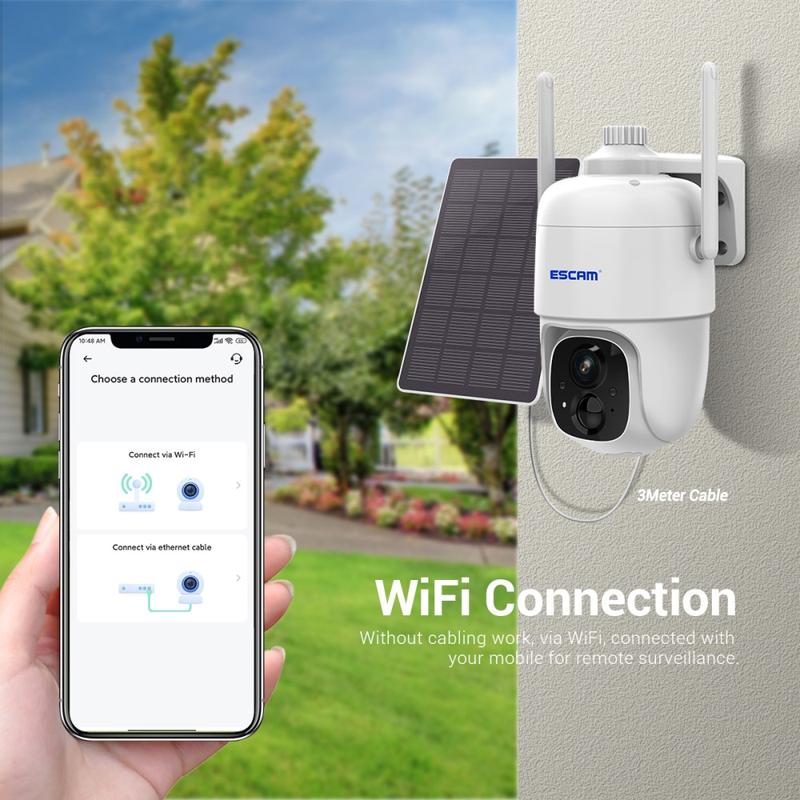

Support 2.4G WiFi (IEEE802.11b/g/n)
Support cloud storage technology, support TF card storage (up to 128GB)
IP66 waterproof rating
Specifications:
Image Sensor
Sensor
1/2.9"color CMOS Sensor
Lens
M12, f: 2.8 mm, F2.2, 3-megapixel
Visual angle
H (horizontal) 96 degrees; V (vertical) 56 degrees; D (diagonal) 128 degrees
Minimum Illumination
0.01Lux
Audio
Input/Output
Two-way voice intercom available (built-in Microphone and speaker)
Audio Compressing Method
AAC
Video
Video Compressing Method
H.265
Lighting Frequency
50 Hz，60 Hz
Image Frame Rate
15 fps
Maximum Image Resolution
2304*1296
Light Source for Night Vision
Mid-power infrared lamp (850nm in wavelength) / dual-source white-light source with an irradiation distance of 20m
Network
Wireless Network
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols Supported
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address Supported
Dynamic IP address supported

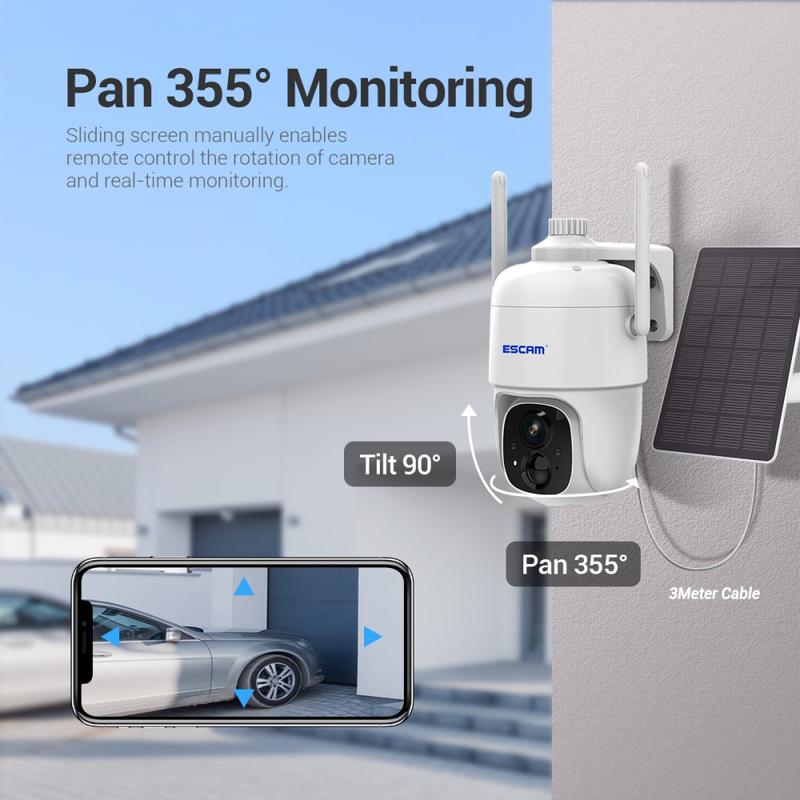

Pan-tilt
rotation angle
H (horizontal) 355 degrees; V (vertical) 90 degrees
AI
Intelligent Features
Human contour detection, activity zone, vehicle detection, pet snapshot, and package inspection
Alarm Notification
Alarm Methods
Alarm push by mobile APP, white light flashing, and alarm sound
Wake-up
Wake-up Method
PIR body induction wake-up, and remote wake-up
Video Recording
Recording Method
Alarm-triggered recording, and manual recording
Video Storage
Cloud storage, local Micro SD card, and mobile phone memory
Indicator Lamps
LED Indicator
RGB tri-color lamp indicating the status of power/network signal/functionality
Battery
Capacity
9000mAh
Removability
Unremovable
Charging Voltage
DV 5V+-5% 1.5A
Charge Time
Within 15 hours
Power Consumption
Standby Power Consumption
1.68 mW
Power Consumption of Daytime Operation
0.88 W
Power Consumption of Operation at Night
2.23 W

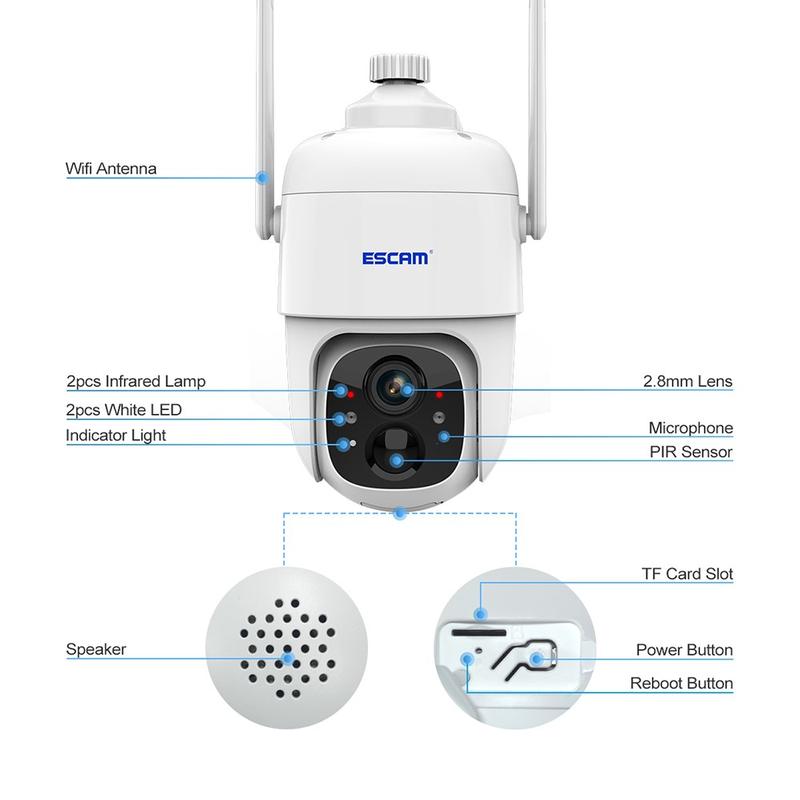

Interfaces
Power Supply
1 Micro USB interface
TF Card
1 TF card (up to 128GB supported)
Keys
1 reboot key and 1 on/off key
Installation Method
Installation Method
Magnet and 1/4 universal screw holes
Environment
Dustproof and waterproof
IP66
Operating Environment
-10 ℃-45 ℃
Storage Environment
-20 ℃-60 ℃
EAN: 5714122379269
-
