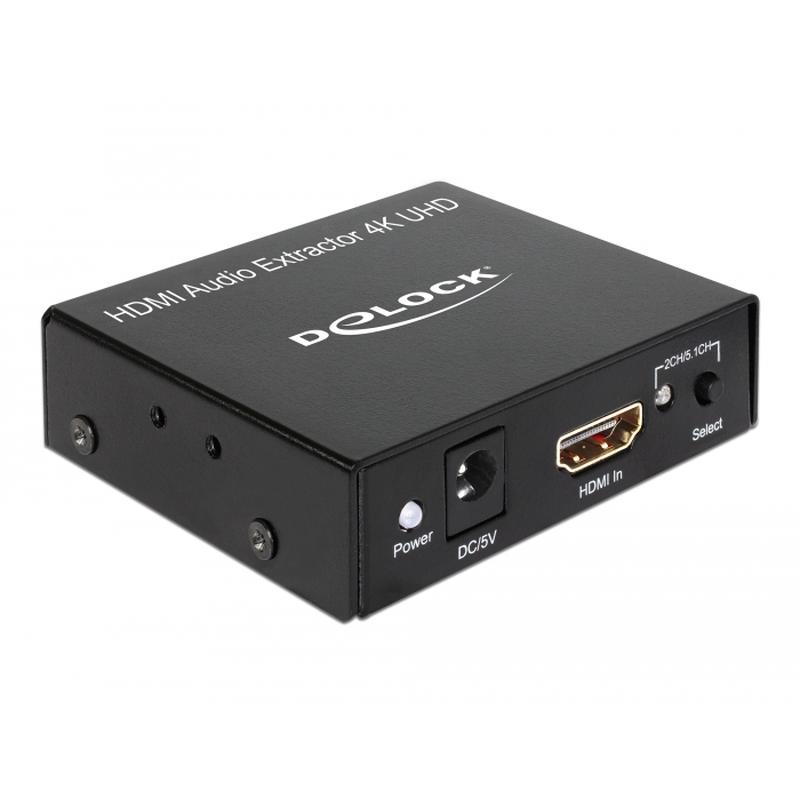

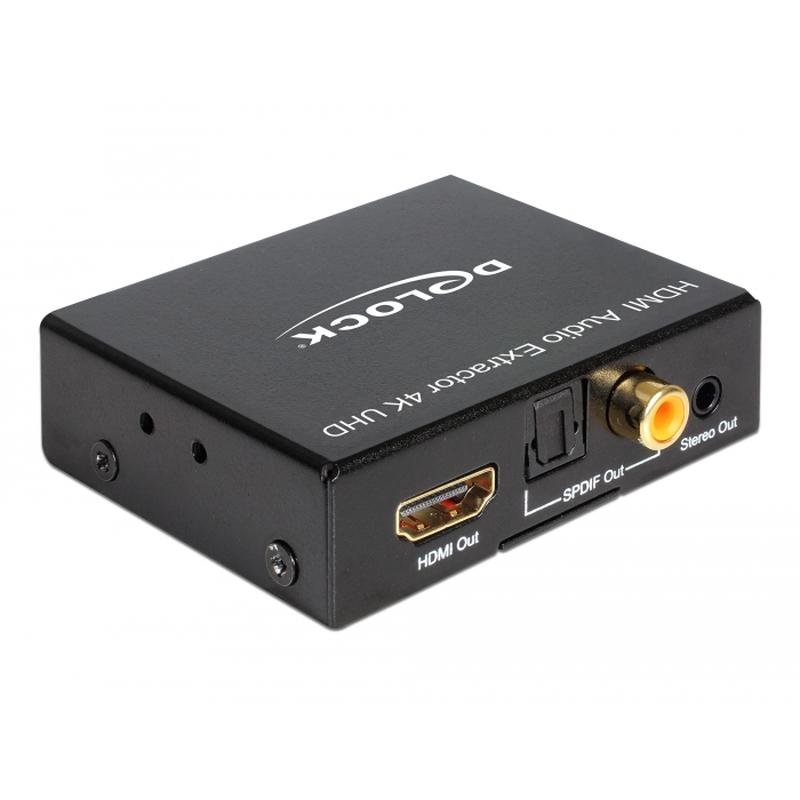

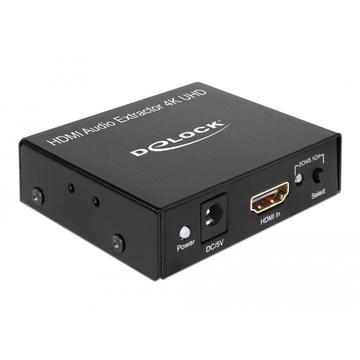

DeLock HDMI Audio Extractor - 4K @ 30Hz
The Delock HDMI Audio Extractor is a versatile adapter that allows users to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digitally (S/PDIF) or analog (stereo) to other devices, such as headphones or a surround receiver. The adapter is equipped with various output connectors, including HDMI-A 19 pin female, 3.5 mm 3 pin stereo jack female, TOSLINK female S/PDIF, and RCA female S/PDIF. It also features a switchable option between stereo and 5.1 channel audio, as well as high speed HDMI, 3D, and HDCP 1.4 support. With a video bandwidth of up to 300 MHz / 3 Gb/s per channel and a resolution of up to 3840 x 2160 @ 30 Hz, this adapter provides a seamless audio extraction experience.
Specifications:
- Connectors: Input: 1 x HDMI-A 19 pin female, 1 x 5 V DC jack 2.1 x 5.5 mm; Output: 1 x HDMI-A 19 pin female, 1 x 3.5 mm 3 pin stereo jack female (audio), 1 x TOSLINK female S/PDIF, 1 x RCA female S/PDIF
- Switchable between stereo and 5.1 channel
- High Speed HDMI, 3D and HDCP 1.4 support
- Output with HDMI repeater function
- Resolution up to 3840 x 2160 @ 30 Hz (8 bit), 1920 x 1080 @ 60 Hz (12 bit)
- Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max
- Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
- Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the system and the connected devices)
- CEC and HDMI audio routed to the output (pass-through)
- Chipset: CS4344, 24 bit / 192 kHz
- Robust metal housing
- Power consumption: max. 2.5 W
- Dimensions (LxWxH): ca. 71 x 61 x 21 mm
Packing: Euroblister
EAN: 4043619626922
